Flood Control Project: Isometric Blueprint

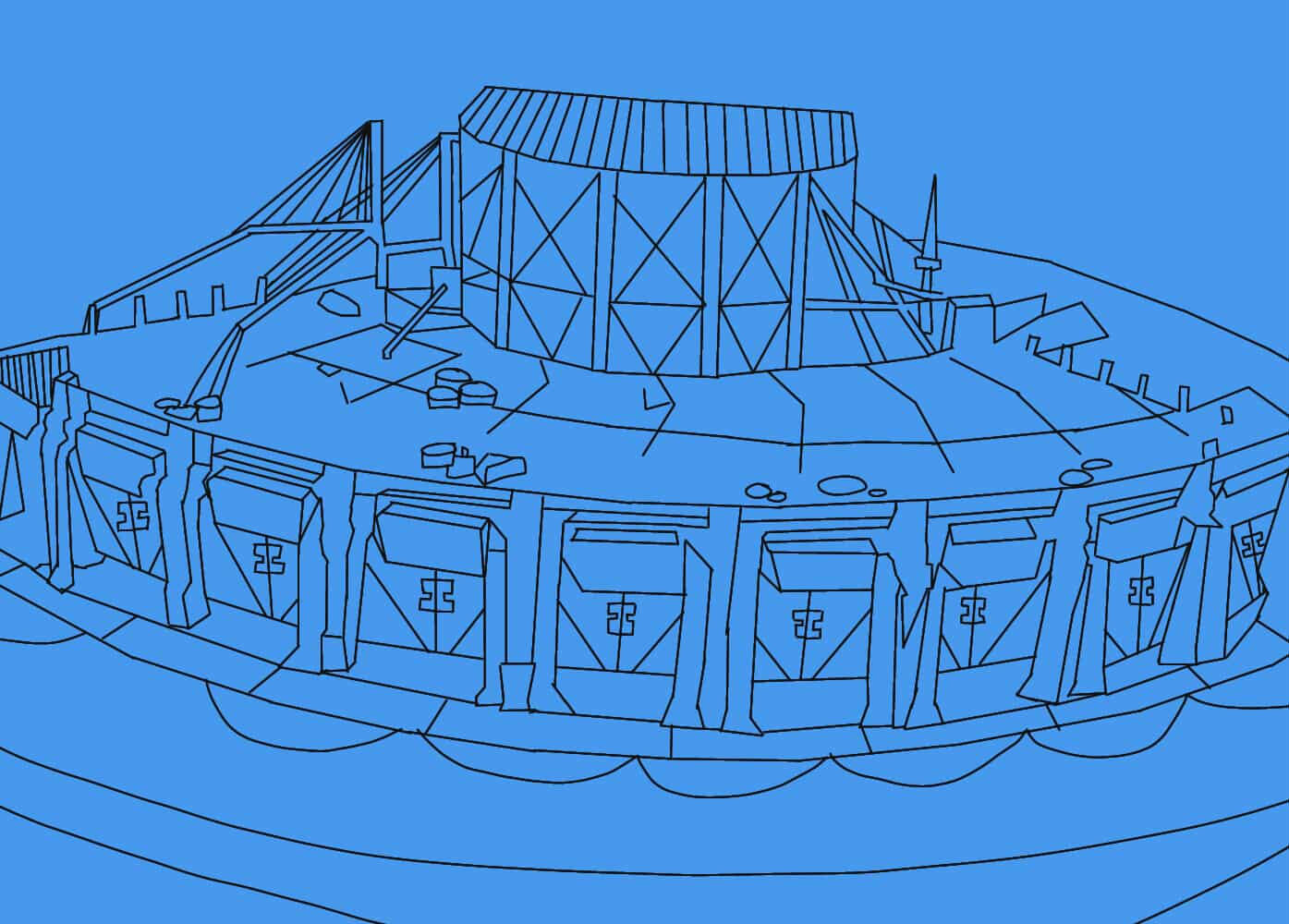

Top View

From the top view, the main circular flood structure can be clearly seen. This includes the central control building, surrounded by canals and floodgates that form a ring around it. It shows a pattern where multiple barriers and drainage paths spaced precisely to manage the flow of water entering and exiting the system.

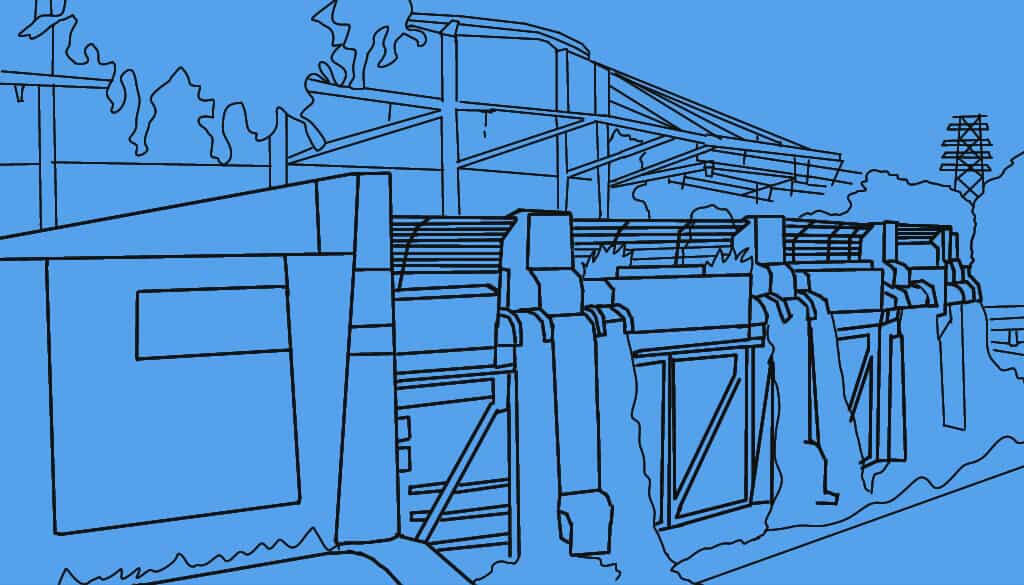

Side View

The side view highlights the elevation vertical structure of the flood control system. You can see the embankments, gates, and supporting columns that hold the structure in place. This view also shows the direction of water flow, where water enters through the canals, passes under and around the gate, and is redirected to prevent any water from overflowing in nearby areas.

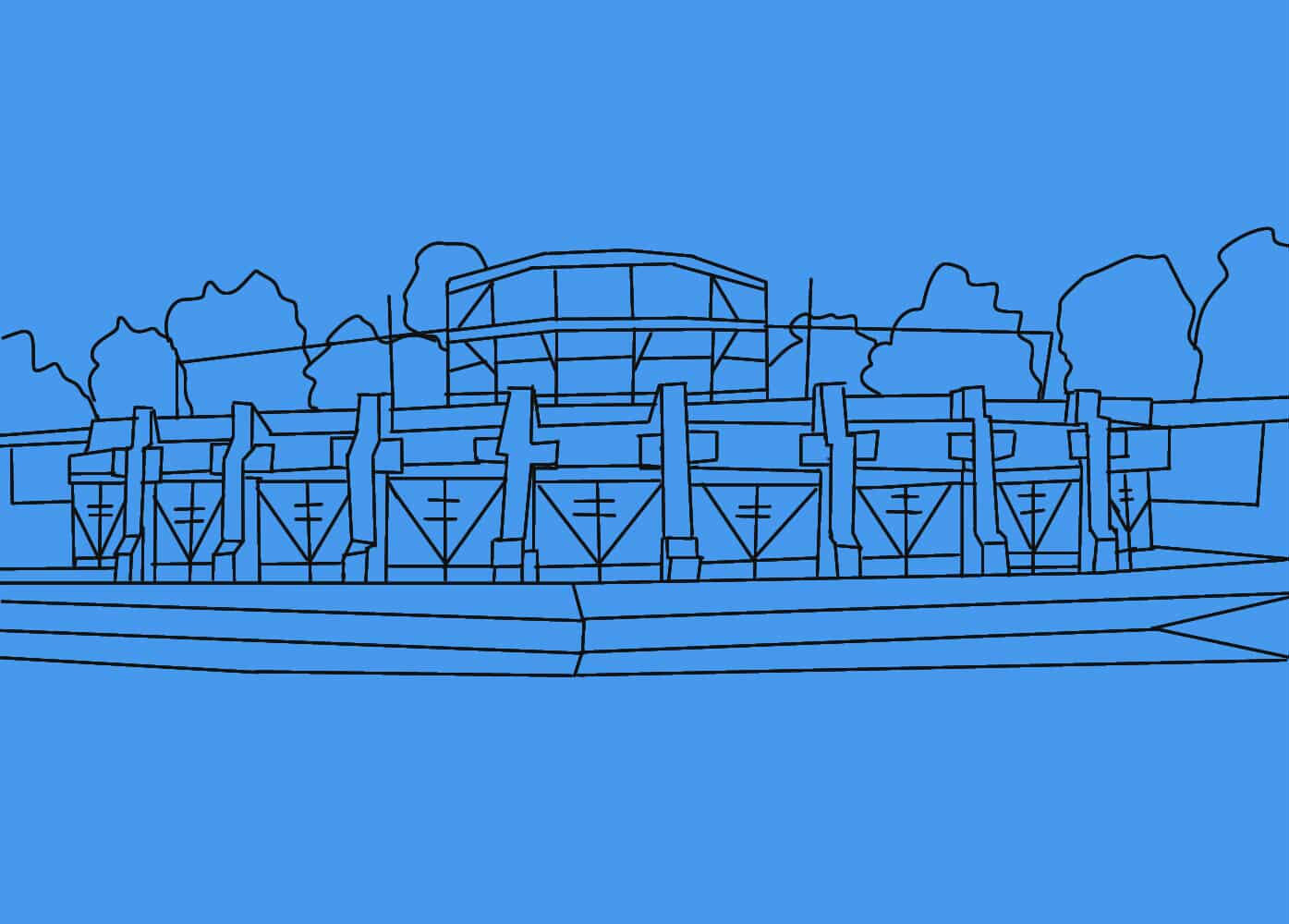

Front view

In the front view, the series of floodgates and barriers are the most visible. These gates control the amount of water passing through the structure. The entrance points for water and the structural front wall of the flood control wall are also shown, emphasizing its strength, and durability. This view also gives a clear look at the mechanical and protective parts that play a key role during heavy rainfall or rising tides.
